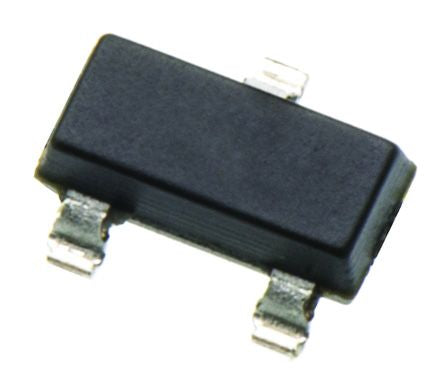

DMN3053L-7 N-Channel MOSFET, 4 A, 30 V, 3-Pin SOT-23 Diodes Inc [DMN3053L-7]; 921-1278
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.166666666666667 |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 55 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.4V |
| Minimum Gate Threshold Voltage | 0.6V |
| Maximum Power Dissipation | 1.2 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 1 |
| Length | 3mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 17.2 nC @ 10 V |
| Forward Diode Voltage | 1.2V |
| Width | 1.4mm |
| Height | 1mm |
| Maximum Operating Temperature | +150 °C |
| Transistor Material | Si |
