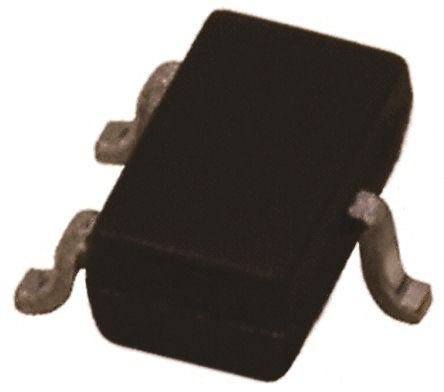

DMN313DLT-7 N-Channel MOSFET, 380 mA, 30 V, 3-Pin SOT-523 Diodes Inc [DMN313DLT-7]; 827-0487
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 380 mA |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOT-523 (SC-89) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 3.2 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.5V |
| Maximum Power Dissipation | 520 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Length | 1.7mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 0.5 nC @ 4.5 V |
| Width | 0.85mm |
| Height | 0.8mm |
