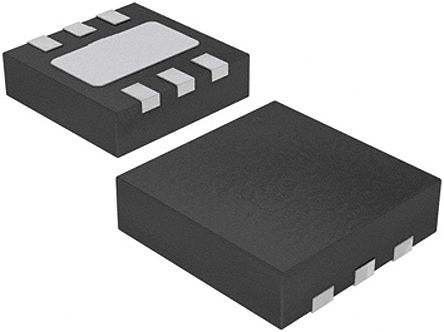

DMP1022UFDF-7 P-Channel MOSFET, 11 A, 12 V, 6-Pin U-DFN2020 Diodes Inc [DMP1022UFDF-7]; 921-1136
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 0.458333333333333 |
| Maximum Drain Source Voltage | 12 V |
| Package Type | U-DFN2020 |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 32 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 0.8V |
| Minimum Gate Threshold Voltage | 0.35V |
| Maximum Power Dissipation | 2.1 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -8 V, +8 V |
| Number of Elements per Chip | 1 |
| Width | 2.05mm |
| Forward Diode Voltage | 1.2V |
| Typical Gate Charge @ Vgs | 48.3 nC @ 8 V |
| Minimum Operating Temperature | -55 °C |
| Height | 0.58mm |
| Maximum Operating Temperature | +150 °C |
| Length | 2.05mm |
| Transistor Material | Si |
