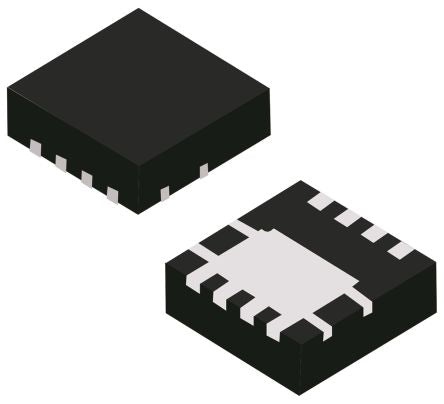

DMP3017SFG-7 P-Channel MOSFET, 15.2 A, 30 V, 8-Pin POWERDI3333 Diodes Inc [DMP3017SFG-7]; 828-3216
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 15.2 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | POWERDI3333 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 18 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 940 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -25 V, +25 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Width | 3.35mm |
| Height | 0.85mm |
| Typical Gate Charge @ Vgs | 41 nC @ 10 V |
| Maximum Operating Temperature | +150 °C |
| Length | 3.35mm |
