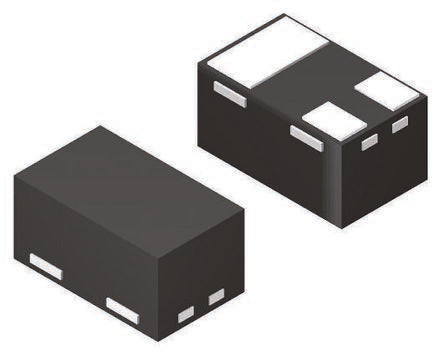

DMP31D0UFB4-7B P-Channel MOSFET, 760 mA, 30 V, 3-Pin X2-DFN1006 Diodes Inc [DMP31D0UFB4-7B]; 122-1473
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 760 mA |
| Maximum Drain Source Voltage | 30 V |
| Package Type | X2-DFN1006 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 2 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.1V |
| Maximum Power Dissipation | 920 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -8 V, +8 V |
| Number of Elements per Chip | 1 |
| Length | 1.08mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 1.5 nC @ 8 V |
| Maximum Operating Temperature | +150 °C |
| Height | 0.35mm |
| Width | 0.675mm |
| Transistor Material | Si |
