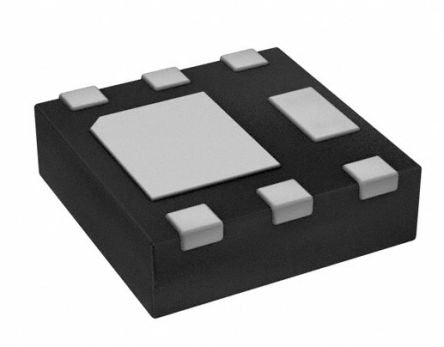

DMP6110SFDF-7 P-Channel MOSFET, 4.2 A, 60 V DMP, 6-Pin U-DFN2020 Diodes Inc [DMP6110SFDF-7]; 146-4868
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 4.2 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | U-DFN2020 |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 130 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 1.97 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Width | 2.05mm |
| Minimum Operating Temperature | -55 °C |
| Length | 2.05mm |
| Forward Diode Voltage | 1.2V |
| Automotive Standard | AEC-Q101 |
| Typical Gate Charge @ Vgs | 17.2 @ 10 V nC |
| Height | 0.58mm |
| Series | DMP |
| Maximum Operating Temperature | +150 °C |
