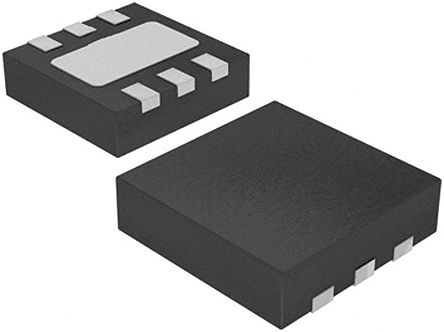

DMT5015LFDF-7 N-Channel MOSFET, 11.5 A, 50 V, 6-Pin U-DFN2020 Diodes Inc [DMT5015LFDF-7]; 921-1164
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 11.5 A |
| Maximum Drain Source Voltage | 50 V |
| Package Type | U-DFN2020 |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 23 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Minimum Gate Threshold Voltage | 0.5V |
| Maximum Power Dissipation | 1.97 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -16 V, +16 V |
| Number of Elements per Chip | 1 |
| Width | 2.05mm |
| Typical Gate Charge @ Vgs | 14 nC @ 10 V |
| Length | 2.05mm |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1V |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Height | 0.58mm |
