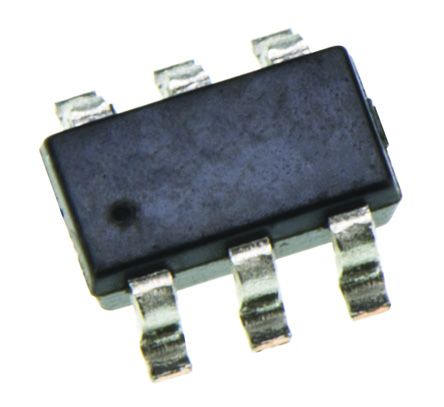

Diodes Inc DT1446-04TS-7, 10-Element Uni-Directional TVS Diode Array, 0.3W, 6-Pin TSOT-26 [DT1446-04TS-7]; 921-1199
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Array |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 8.5V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | TSOT-26 |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 0.3W |
| Maximum Peak Pulse Current | 4.7A |
| ESD Protection | Yes |
| Number of Elements per Chip | 10 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 2.9 x 1.6 x 0.9mm |
| Working Voltage | 6V |
| Maximum Reverse Leakage Current | 5µA |
| Width | 1.6mm |
| Height | 0.9mm |
| Length | 2.9mm |
| Capacitance | 0.65pF |
| Test Current | 1mA |
