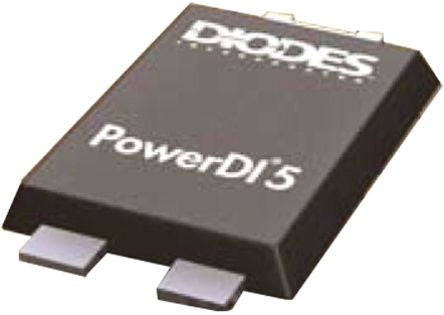

Diodes Inc DXT2010P5-13 NPN Transistor, 6 A, 60 V, 3-Pin PowerDI 5 [DXT2010P5-13]; 823-1280
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 0.25 |
| Maximum Collector Emitter Voltage | 60 V |
| Package Type | PowerDI 5 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 3.2 W |
| Minimum DC Current Gain | 300 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 150 V |
| Maximum Emitter Base Voltage | 7 V |
| Maximum Operating Frequency | 130 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Width | 5.45mm |
| Dimensions | 4.05 x 5.45 x 1.15mm |
| Maximum Base Emitter Saturation Voltage | 1100 mV |
| Maximum Collector Emitter Saturation Voltage | 260 mV |
| Length | 4.05mm |
| Maximum Operating Temperature | +150 °C |
| Height | 1.15mm |
| Minimum Operating Temperature | -55 °C |
