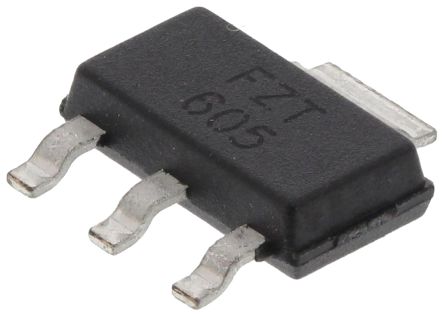

Diodes Inc FZT605TA NPN Darlington Pair, 1.5 A 120 V HFE:500, 3 + Tab-Pin SOT-223 [FZT605TA]; 922-7718
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum Continuous Collector Current | 1.5 A |
| Maximum Collector Emitter Voltage | 120 V |
| Maximum Emitter Base Voltage | 10 V |
| Package Type | SOT-223 |
| Mounting Type | Surface Mount |
| Pin Count | 3 + Tab |
| Transistor Configuration | Single |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain | 500 |
| Maximum Base Emitter Saturation Voltage | 1.8 V |
| Maximum Collector Base Voltage | 140 V |
| Maximum Collector Emitter Saturation Voltage | 1.5 V |
| Maximum Collector Cut-off Current | 0.00001mA |
| Length | 6.7mm |
| Maximum Operating Temperature | +150 °C |
| Height | 1.65mm |
| Width | 3.7mm |
| Dimensions | 6.7 x 3.7 x 1.65mm |
| Minimum Operating Temperature | -55 °C |
