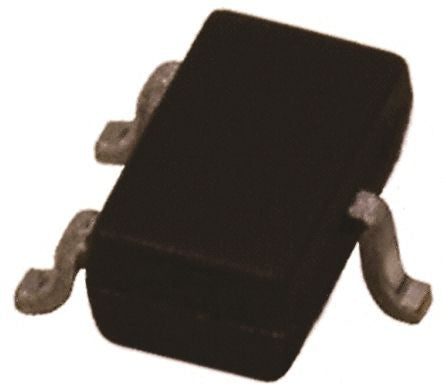

Diodes Inc MMBT2222AT-7-F NPN Transistor, 600 mA, 40 V, 3-Pin SOT-523 [MMBT2222AT-7-F]; 823-1451
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 600 mA |
| Maximum Collector Emitter Voltage | 40 V |
| Package Type | SOT-523 (SC-89) |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 150 mW |
| Minimum DC Current Gain | 300 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 75 V |
| Maximum Emitter Base Voltage | 6 V |
| Maximum Operating Frequency | 300 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Maximum Base Emitter Saturation Voltage | 2 V |
| Dimensions | 1.7 x 0.85 x 0.8mm |
| Minimum Operating Temperature | -55 °C |
| Length | 1.7mm |
| Maximum Collector Emitter Saturation Voltage | 1 V |
| Height | 0.8mm |
| Width | 0.85mm |
| Maximum Operating Temperature | +150 °C |
