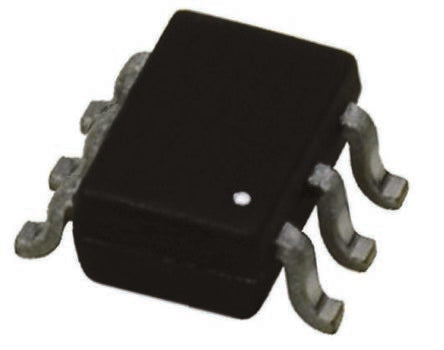

Diodes Inc MMDT3946-7-F Dual NPN + PNP Transistor, 200 mA, 40 V, 6-Pin SOT-363 [MMDT3946-7-F]; 711-5017
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN + PNP |
| Maximum DC Collector Current | 200 mA |
| Maximum Collector Emitter Voltage | 40 V |
| Package Type | SOT-363 (SC-88) |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 200 mW |
| Minimum DC Current Gain | 30 |
| Transistor Configuration | Isolated |
| Maximum Collector Base Voltage | -40 V, 60 V |
| Maximum Emitter Base Voltage | -5 (PNP) V, 6 (NPN) V |
| Pin Count | 6 |
| Number of Elements per Chip | 2 |
| Maximum Collector Emitter Saturation Voltage | -0.4 (PNP) V, 0.3 (NPN) V |
| Width | 1.35mm |
| Height | 1mm |
| Maximum Operating Temperature | +150 °C |
| Length | 2.2mm |
| Dimensions | 2.2 x 1.35 x 1mm |
| Maximum Base Emitter Saturation Voltage | -0.95 PNP V, 0.95 NPN V |
| Minimum Operating Temperature | -55 °C |
