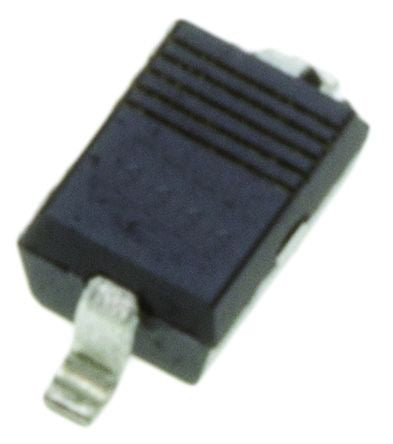

Diodes Inc SD12-7, Uni-Directional TVS Diode, 350W, 2-Pin SOD-323 [SD12-7]; 921-1240
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 25V |
| Minimum Breakdown Voltage | 13.3V |
| Mounting Type | Surface Mount |
| Package Type | SOD-323 |
| Maximum Reverse Stand-off Voltage | 12V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 350W |
| Maximum Peak Pulse Current | 15A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 1.8 x 1.4 x 1.1mm |
| Maximum Reverse Leakage Current | 1µA |
| Test Current | 1mA |
| Capacitance | 150pF |
| Width | 1.4mm |
| Height | 1.1mm |
| Length | 1.8mm |
