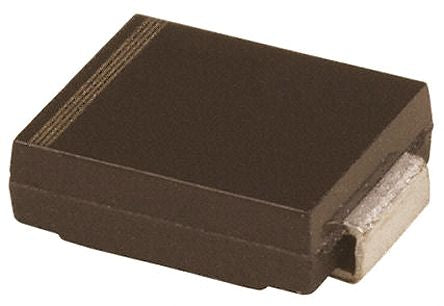

Diodes Inc SMCJ12A-13-F, Uni-Directional TVS Diode, 1500W, 2-Pin SMC [SMCJ12A-13-F]; 169-7418
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 19.9V |
| Minimum Breakdown Voltage | 13.3V |
| Mounting Type | Surface Mount |
| Package Type | SMC |
| Maximum Reverse Stand-off Voltage | 12V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1500W |
| Maximum Peak Pulse Current | 75.3A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current | 5µA |
| Length | 7.11mm |
| Height | 2.3mm |
| Width | 6.22mm |
| Dimensions | 7.11 x 6.22 x 2.3mm |
| Test Current | 1mA |
