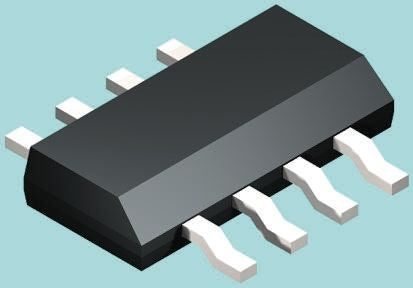

Diodes Inc ZDT1049TA Dual NPN Transistor, 5 A, 25 V, 8-Pin SM [ZDT1049TA]; 823-1791
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 0.208333333333333 |
| Maximum Collector Emitter Voltage | 25 V |
| Package Type | SM |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 2.75 W |
| Minimum DC Current Gain | 1200 |
| Transistor Configuration | Isolated |
| Maximum Collector Base Voltage | 80 V |
| Maximum Emitter Base Voltage | 5 V |
| Maximum Operating Frequency | 180 MHz |
| Pin Count | 8 |
| Number of Elements per Chip | 2 |
| Width | 3.7mm |
| Maximum Collector Emitter Saturation Voltage | 220 mV |
| Dimensions | 6.7 x 3.7 x 1.6mm |
| Length | 6.7mm |
| Height | 1.6mm |
| Maximum Operating Temperature | +150 °C |
| Maximum Base Emitter Saturation Voltage | 950 mV |
| Minimum Operating Temperature | -55 °C |
