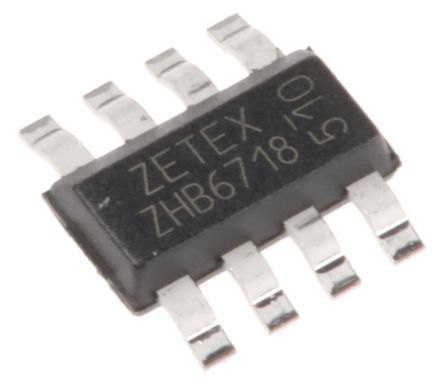

Diodes Inc ZHB6718TA Quad NPN + PNP Transistor, 2.5 A, 20 V, 8-Pin SM [ZHB6718TA]; 922-7872
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN + PNP |
| Maximum DC Collector Current | 2.5 A |
| Maximum Collector Emitter Voltage | 20 V |
| Package Type | SM |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 2 W |
| Minimum DC Current Gain | 35 (PNP), 200 (NPN) V |
| Transistor Configuration | Full Bridge |
| Maximum Collector Base Voltage | 20 V |
| Maximum Emitter Base Voltage | 5 V |
| Maximum Operating Frequency | 140 MHz |
| Pin Count | 8 |
| Number of Elements per Chip | 4 |
| Width | 3.7mm |
| Maximum Collector Emitter Saturation Voltage | 0.2 (NPN) V, 0.26 (PNP) V |
| Minimum Operating Temperature | -55 °C |
| Maximum Base Emitter Saturation Voltage | 1 (NPN) V, 1.1 (PNP) V |
| Length | 6.7mm |
| Maximum Operating Temperature | +150 °C |
| Height | 1.6mm |
| Dimensions | 6.7 x 3.7 x 1.6mm |
