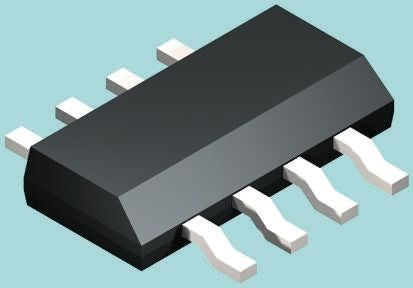

Diodes Inc ZHB6790TA Quad NPN + PNP Transistor, 2 A, 40 V, 8-Pin SM [ZHB6790TA]; 751-5164
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN + PNP |
| Maximum DC Collector Current | 0.0833333333333333 |
| Maximum Collector Emitter Voltage | 40 V |
| Package Type | SM |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 2 W |
| Minimum DC Current Gain | 150 (NPN), 150 (PNP) |
| Transistor Configuration | Full Bridge |
| Maximum Collector Base Voltage | -50 V, 50 V |
| Maximum Emitter Base Voltage | -5 (PNP) V, 5 (NPN) V |
| Maximum Operating Frequency | 100 (PNP) MHz, 150 (NPN) MHz |
| Pin Count | 8 |
| Number of Elements per Chip | 4 |
| Minimum Operating Temperature | -55 °C |
| Maximum Collector Emitter Saturation Voltage | -0.75 (PNP) V, 0.5 (NPN) V |
| Width | 3.7mm |
| Length | 6.7mm |
| Dimensions | 6.7 x 3.7 x 1.6mm |
| Maximum Base Emitter Saturation Voltage | -1 (PNP) V, 0.9 (NPN) V |
| Maximum Operating Temperature | +150 °C |
| Height | 1.6mm |
