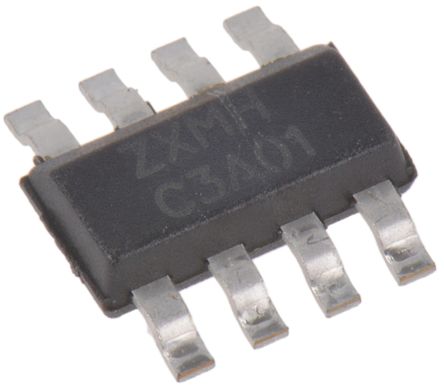

ZXMHC3A01T8TA Quad N/P-Channel MOSFET, 1.8 A, 3.1 A, 30 V, 8-Pin SM Diodes Inc [ZXMHC3A01T8TA]; 922-8594
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N, P |
| Maximum Continuous Drain Current | 1.8 A, 3.1 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SM |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 180 mΩ, 330 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 1.7 W |
| Transistor Configuration | Full Bridge |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 4 |
| Width | 3.7mm |
| Typical Gate Charge @ Vgs | 3.9 nC @ 10 V, 5.2 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Height | 1.6mm |
| Length | 6.7mm |
