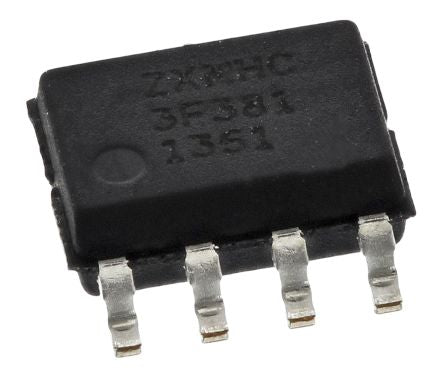

ZXMHC3F381N8TC Quad N/P-Channel MOSFET, 4.1 A, 4.98 A, 30 V, 8-Pin SOIC Diodes Inc [ZXMHC3F381N8TC]; 122-1424
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N, P |
| Maximum Continuous Drain Current | 4.1 A, 4.98 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 60 mΩ, 80 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 1.35 W |
| Transistor Configuration | Full Bridge |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 4 |
| Transistor Material | Si |
| Width | 4mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Height | 1.5mm |
| Typical Gate Charge @ Vgs | 9 nC @ 10 V |
| Length | 5mm |
