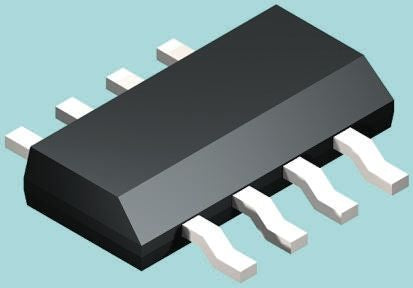

ZXMS6004DT8TA Dual N-Channel MOSFET, 1.2 A, 60 V IntelliFET, 8-Pin SM Diodes Inc [ZXMS6004DT8TA]; 122-0311
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 1.2 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | SM |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 600 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.5V |
| Maximum Power Dissipation | 2.13 W |
| Transistor Configuration | Isolated |
| Number of Elements per Chip | 2 |
| Series | IntelliFET |
| Maximum Operating Temperature | +125 °C |
| Length | 4.95mm |
| Transistor Material | Si |
| Width | 3.95mm |
| Height | 1.5mm |
| Minimum Operating Temperature | -40 °C |
