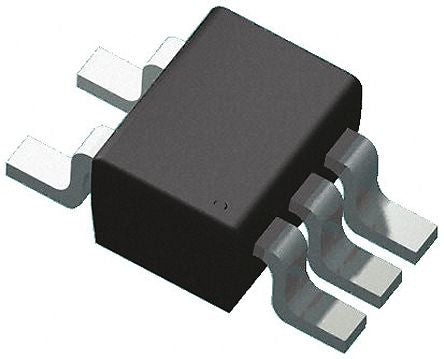

Diodes Inc ZXRE060ET5TA, Adjustable Shunt Voltage Reference, ±1.0 % 5-Pin, TSOT-23 [ZXRE060ET5TA]; 169-7438
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Package Type | TSOT-23 |
| Reference Type | Adjustable |
| Initial Accuracy | ±1.0 % |
| Mounting Type | Surface Mount |
| Topology | Shunt |
| Maximum Output Current | 15mA |
| Maximum Input Voltage | 18 V |
| Minimum Output Voltage | 0.2 V |
| Maximum Output Voltage | 18 V |
| Pin Count | 5 |
| Line Regulation | 1.5 mV |
| Load Regulation | 10 mV |
| Dimensions | 2.9 x 1.6 x 0.9mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +150 °C |
| Width | 1.6mm |
| Length | 2.9mm |
| Height | 0.9mm |
