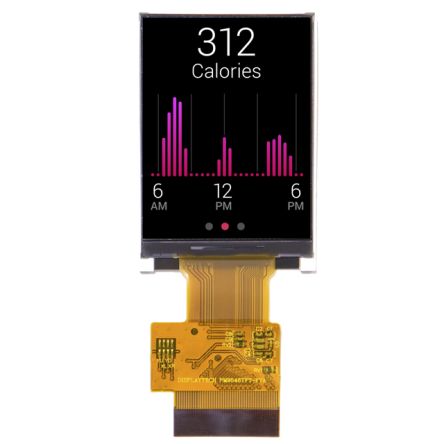

Displaytech DT022CTFT TFT LCD Display / Touch Screen, 2.2in, 240 x 320pixels [DT022CTFT]; 182-5796
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diagonal Display Size | 2.2in |
| Interface Type | MCU, RGB |
| Resolution | 240 x 320pixels |
| Touch Screen | Yes |
| Viewing Area Dimensions | 33.84 x 45.12mm |
| Touch Screen Type | Resistive |
| Supply Voltage | 2.6 → 3.3 V |
| Backlight Type | LED |
| Display Mode | Normally White, Transmissive |
| AC or DC Input Voltage | Ac |
| Dimensions | 38.5 x 2.35 x 56.16mm |
| Display Matrix Technology | TFT |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Operating Temperature Range | -20 → +70°C |
| Response Time | 10ms |
| Depth | 2.35mm |
| Number of Colours | 262K |
| Width | 38.5mm |
| Current Rating | 0.1 (Sleep) mA, 10 (Normal) mA |
| Contrast Ratio | 20.8340277777778 |
| Viewing Area Height | 45.12mm |
| Brightness | 330cd/m² |
| Display Type | TFT LCD |
| Series | DT022 |
| Voltage Rating | 2.6 → 3.3V |
| Height | 56.16mm |
| Viewing Area Width | 33.84mm |
