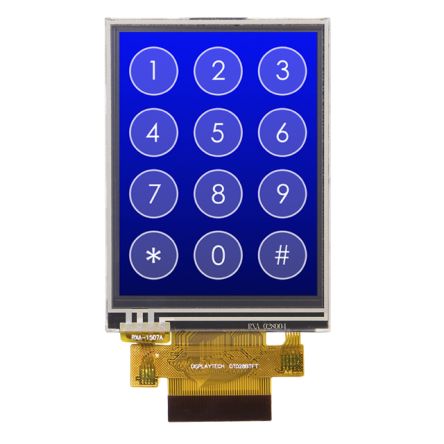

Displaytech DT028BTFT-TS TFT LCD Display / Touch Screen, 2.8in, 240 x 320pixels [DT028BTFT-TS]; 182-5798
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diagonal Display Size | 2.8in |
| Interface Type | MCU, RGB |
| Resolution | 240 x 320pixels |
| Touch Screen | Yes |
| Viewing Area Dimensions | 43.2 x 57.6mm |
| Supply Voltage | 2.6 → 3.3 V |
| Touch Screen Type | Resistive |
| Backlight Type | LED |
| Display Mode | Transmissive |
| AC or DC Input Voltage | Ac |
| Dimensions | 50 x 3.9 x 69.2mm |
| Display Matrix Technology | TFT |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Height | 69.2mm |
| Current Rating | 0.1 (Sleep) mA, 15 (Normal) mA |
| Voltage Rating | 2.6 → 3.3V |
| Width | 50mm |
| Depth | 3.9mm |
| Response Time | 10ms |
| Viewing Area Width | 43.2mm |
| Operating Temperature Range | -20 → +70°C |
| Viewing Area Height | 57.6mm |
| Brightness | 220cd/m² |
| Series | DT028 |
| Display Type | TFT LCD |
| Contrast Ratio | 20.8340277777778 |
