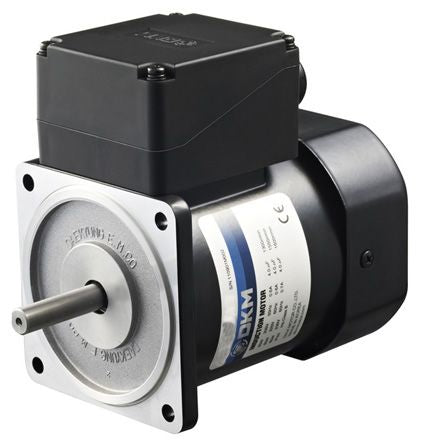

DKM Reversible Induction AC Motor, 90 W, 3 Phase, 4 Pole, 220 V [9IDGG-90FP-T]; 103-3954
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Rating | 90 W |
| AC Motor Type | Induction |
| Supply Voltage | 220 V |
| Phase | 3 |
| Output Speed | 1300 (50 Hz) rpm, 1600 (60 Hz) rpm |
| Number of Poles | 4 |
| Shaft Diameter | 15mm |
| Shaft Length | 31mm |
| Length | 90mm |
| Width | 90mm |
| Depth | 213mm |
| Dimensions | 90 x 90 x 213 mm |
| Bearing Type | Ball |
| Current Rating | 550 mA @ 60 Hz, 660 mA @ 50 Hz |
| Standards Met | JIS C4003 (IEC 60085) |
| Rotation | Reversible |
| Maximum Output Torque | 0.78 Nm |
