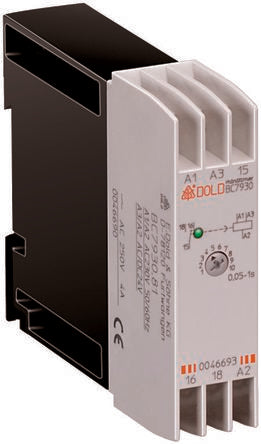

Dold Continuous Single Timer Relay, Screw, 0.05 → 15 s, 0.2 → 15 min, 0.2 → 16 h, SPDT, 1 Contacts [BC7934N.81 AC/DC24V + AC230V 0.05S-16H]; 358-7235
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V ac/dc, 230 V ac |
| Time Range | 0.05 → 15 s, 0.2 → 15 min, 0.2 → 16 h |
| Mode of Operation | Continuous |
| Mounting Type | DIN Rail |
| Number of Timer Functions | Single |
| Number of Contacts | 1 |
| Series | BC7934N |
| Time Increment | Hours, Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | SPDT |
| Current Maximum | 0.125 |
| Terminal Type | Screw |
| Maximum Voltage | 230 V ac |
| Minimum Operating Temperature | -20°C |
| Depth | 97mm |
| Length | 84mm |
| Width | 22.5mm |
| Time Delay | <=100 (Recovery) ms |
| Maximum Operating Temperature | +60°C |
