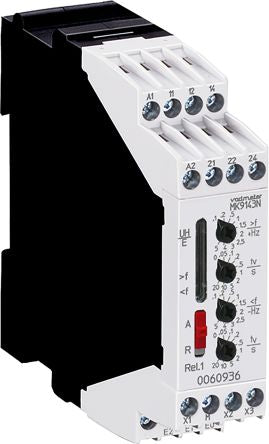

Dold Monitoring Relay [MK9143N.38 +/-5Hz UH=DC24V tv=0-20s tan=0-30s]; 181-2793
Mã kho: 1812793
Mã nhà sản xuất: MK9143N.38 +/-5Hz UH=DC24V tv=0-20s tan=0-30s
Tên nhà sản xuất:
Dold
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Frequency |
| Supply Voltage | 24 V dc |
| Contact Configuration | 2 x 1CO |
| Time Delay | 0 → 20 s, 0 → 30 s |
| Frequency Sensing Range | ±5 Hz |
| Frequency Sensitivity | Overfrequency, Underfrequency |
| Terminal Type | Screw |
| Mounting Type | DIN Rail |
| Height | 90mm |
| Maximum Frequency Sensed | +5Hz |
| Dimensions | 22.5 x 97 x 90 mm |
| Series | MK9143N |
| Maximum Operating Temperature | +60°C |
| Width | 97mm |
| Length | 22.5mm |
| Operating Temperature Range | -20 → +60 °C |
| Minimum Frequency Sensed | -5Hz |
| Minimum Operating Temperature | -20°C |
