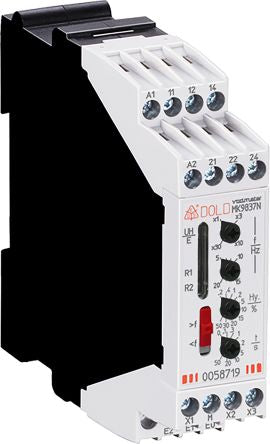

Dold Monitoring Relay [MK9837N.12 5-600Hz UH=AC230V]; 181-2790
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Frequency |
| Supply Voltage | 230 V ac |
| Contact Configuration | DPDT |
| Voltage Sensing Range | 15 → 280 V ac, 30 → 550 V ac |
| Time Delay | 0 → 100 s, 0 → 50 s |
| Frequency Sensing Range | 5 → 600 Hz |
| Height | 90mm |
| Maximum Voltage Sensed | 280 V ac, 550 V ac |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Operating Temperature Range | -20 → +60 °C |
| Minimum Voltage Sensed | 15 V ac, 30 V ac |
| Width | 97mm |
| Series | MK9837N |
| Minimum Operating Temperature | -20°C |
| Minimum Frequency Sensed | 5Hz |
| Length | 22.5mm |
| Frequency Sensitivity | Overfrequency, Underfrequency |
| Maximum Operating Temperature | +60°C |
| Dimensions | 22.5 x 97 x 90 mm |
| Maximum Frequency Sensed | 500Hz |
