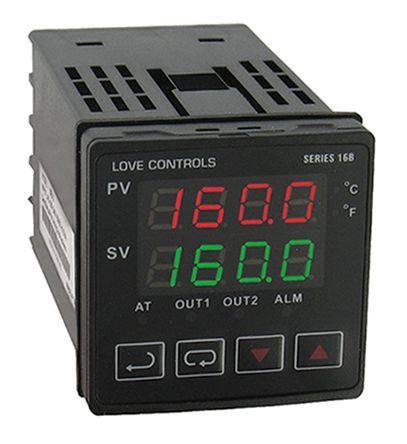

DWYER INSTRUMENTS 16B Panel Mount PID Temperature Controller, 48 x 48mm 1 Input, 2 Output Relay [16B-33]; 906-9364
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Type | Relay |
| Supply Voltage | 100 240 V ac |
| Size | 48 x 48mm |
| Number of Inputs | 1 |
| Number of Outputs | 2 |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +50°C |
| Temperature Range | -200 +1300 (Type K Thermocouple) °C, -200 +1300 (Type W Thermocouple) °C, -200 +400 (Type T Thermocouple) °C, -200 +500 (Type U Thermocouple) °C, -200 +600 (Pt 100 RTD) °C, -200 +850 (Type L Thermocouple) °C, -100 +1200 (Type J Thermocouple) °C, 0 +1700 (Type R Thermocouple) °C, 0 +1700 (Type S Thermocouple) °C, 0 +600 (Type E Thermocouple) °C, +100 +1800 (Type B thermocouple) °C |
| Communication Module Available | Yes |
| Display Type | 7-Segment LED Display |
| IP Rating | IP56 |
| Mounting Type | Panel Mount |
| Display Colour | Green, Red |
| Series | 16B |
| Panel Depth | 80mm |
| Input Type | DC Current, DC Voltage, RTD, Thermocouple |
| Termination Type | Pin |
