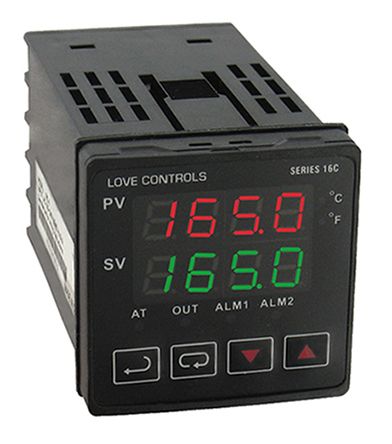

DWYER INSTRUMENTS 16C Panel Mount PID Temperature Controller, 48 x 48mm 1 Input, 1 Output Relay [16C-3]; 906-9370
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Type | Relay |
| Supply Voltage | 100 → 240 V ac |
| Size | 48 x 48mm |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +50°C |
| Temperature Range | -200 → +1300 (Type N Thermocouple) °C, -200 → +400 (Type T Thermocouple) °C, -200 → +500 (Type K Thermocouple) °C, -200 → +500 (Type L Thermocouple) °C, -200 → +600 (Type RTD) °C, -200 → +800 (Type U Thermocouple) °C, -100 → +850 (Type J Thermocouple) °C, 0 → +1700 (Type R Thermocouple) °C, 0 → +1700 (Type S Thermocouple) °C, 0 → +600 (Type E Thermocouple) °C, +100 → +1800 (Type B Thermocouple) °C |
| Communication Module Available | Yes |
| Display Type | 7-Segment LED Display |
| IP Rating | IP66 |
| Panel Depth | 80mm |
| Series | 16C |
| Termination Type | Pin |
| Display Colour | Green, Red |
| Mounting Type | Panel Mount |
| Input Type | RTD, Thermocouple |
