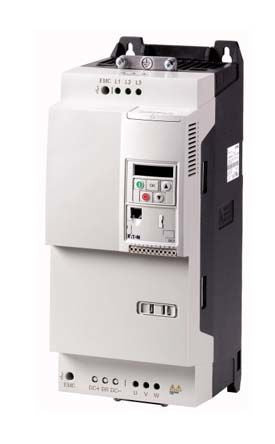

Eaton Inverter Drive, 3-Phase In 15 kW, 400 V ac with EMC Filter, 30 A DC1, IP20 [DC1-34030FB-A20CE1]; 134-8010
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Rating | 15 kW |
| Phase | 3 |
| Supply Voltage | 400 V ac |
| Current Rating | 30 A |
| For Use With | Conveyor Belt Systems, Fan Application, Pump |
| Ambient Temperature | +50°C |
| Overall Width | 211mm |
| Overall Length | 173mm |
| Overall Depth | 418.5mm |
| Drive Type | Vector Control |
| Field Bus Communication Type | CANOpen |
| Filter Included | Yes |
| Series | DC1 |
| Standards Met | CE, CUL, EAC, RCM, UkrSEPRO, UL |
| IP Rating | IP20 |
| Special Features | Control of High Efficient IE4 Motors, DC Braking, Detachable Control Signal Terminal Strip, Fast Commissioning with 14 Basic Parameters, Full Short Circuit Protection, Integrated Braking Transistor, Integrated Canopen & Modbus RTU, Integrated EMC Filter, Integrated PI Controller, Large Overload Capability, Sensorless Vector Control, V/F Control, Voltage Boost |
| Mounting Type | Flange Mount |
| Function | Motor Control |
