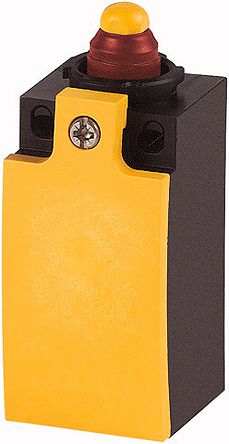

IP65 Snap Action Limit Switch Plunger Cold Climate Insulated Plastic, 2NC, 415V [LS-S02-CC]; 123-6416
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Plunger |
| Normal State Configuration | 2NC |
| IP Rating | IP65 |
| Maximum Current | 3 A @ 24 V dc, 6 A @ 24 V ac |
| Housing Material | Cold Climate Insulated Plastic |
| Maximum AC Voltage | 415V |
| Maximum DC Voltage | 220V |
| Connection Type | Screw |
| Series | LS-Titan |
| Contact Type | Snap Action |
| Length | 31mm |
| Width | 33.5mm |
| Depth | 76mm |
| Minimum Operating Temperature | -40°C |
| Operating Force | 1N |
| Mounting Orientation | Top |
| Dimensions | 31 x 33.5 x 76 mm |
| Mechanical Life Minimum | 8000000 Operations |
| Maximum Operating Temperature | +70°C |
| Standards Met | CAS File No 12528, CAS-C22.2, CE, CSA, CSA Class No 3211-03, FS Approval, IEC 60068-2-30, IEC 60068-2-78, IEC EN 61000-4-2, IEC EN 61000-4-5, IEC/EN 60947, IEC/EN 60947-5, IEC/EN 61000-4-6, TUV Approval, UL, UL CCN NKCR, UL File No 508, UL File No E29184 |
