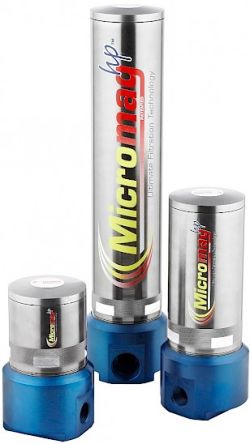

Eclipse Micromag HP/50 series 50 bar 1in Hydraulic Filter, 100L/min max [MM10/HP/50]; 323-828

The Eclipse MicroMag HP/50 has all the same benefits of the standard Micromag but has been developed to suit high pressure through spindle-coolant applications, where the smallest of particles can damage seals, spindles and even reduce the efficiency of the cutting tool. It can be installed anywhere in the fluid delivery system and will ensure that even sub-micron magnetic and para-magnetic particles are removed before they can cause any expensive damage.

Flow rate of 100 litres per min

Max operating pressure is 50 bars

Contamination Capacity is 2kg

Full aluminium construction

Dimensions 365x116x125 mm
