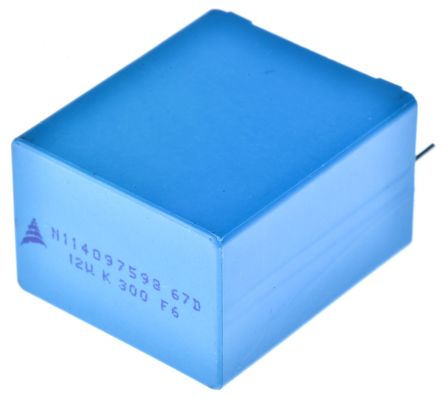

EPCOS 12μF Polypropylene Capacitor PP 300 V dc, 450 V dc ±11% Tolerance B32674 Series [B32674D3126K000]; 172-5775
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 12 µF |
| Voltage | 300 V dc, 450 V dc |
| Tolerance | ±11% |
| Series | B32674 |
| Lead Pitch | 27.5mm |
| Length | 31.5mm |
| Depth | 22mm |
| Height | 36.5mm |
| Dimensions | 31.5 x 22 x 36.5mm |
| Lead Length | 6mm |
| Terminal Type | Radial |
| Lead Diameter | 0.8mm |
| Equivalent Series Resistance | 4mΩ |
| Maximum Operating Temperature | +105°C |
| Dielectric Material Family | Metallised Polypropylene Film |
| Minimum Operating Temperature | -40°C |
| Dissipation Factor | 0.005 %@ 1kHz |
