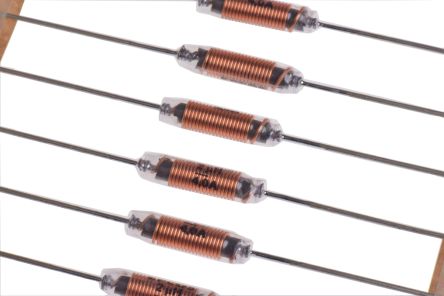

EPCOS 2 μH ±20% Carbonyl Iron Leaded Inductor, Max SRF:186MHz, 4A Idc, 20mΩ Rdc VHF [B82132A5402M000]; 167-0225
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 2 μH |
| Maximum DC Current | 4A |
| Mounting Type | Axial |
| Maximum DC Resistance | 20mΩ |
| Tolerance | ±20% |
| Diameter | 5.5mm |
| Length | 20mm |
| Dimensions | 5.5 (Dia.) x 20mm |
| Core Material | Carbonyl Iron |
| Maximum Self Resonant Frequency | 186MHz |
| Lead Pitch | 22.5mm |
| Series | VHF |
| Minimum Operating Temperature | +20°C |
| Terminal Type | Axial Leaded |
| Lead Diameter | 0.8mm |
| Maximum Operating Temperature | +60°C |
