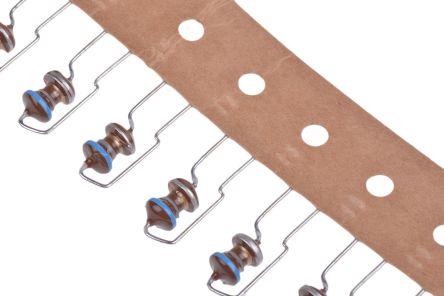

EPCOS 6.8 μH ±10% Ferrite Leaded Inductor, Max SRF:40MHz, Q:50, 2.75A Idc, 95mΩ Rdc B82144B2 [B82144B2682K000]; 162-0277
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 6.8 μH |
| Maximum DC Current | 2.75A |
| Mounting Type | Radial |
| Maximum DC Resistance | 95mΩ |
| Tolerance | ±10% |
| Diameter | 6.5mm |
| Height | 11.5mm |
| Dimensions | 6.5 x 11.5mm |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 40MHz |
| Lead Pitch | 4mm |
| Series | B82144B2 |
| Lead Diameter | 0.8mm |
| Terminal Type | Radial Leaded |
| Maximum Operating Temperature | +40°C |
| Minimum Quality Factor | 50 |
