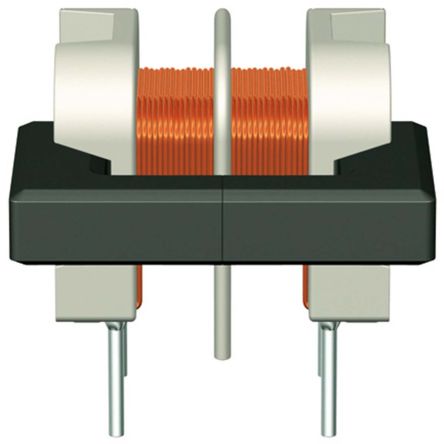

EPCOS 330 μH -30 → +50% Ferrite Common Mode Choke, Max SRF:100kHz, 2.6A Idc, 60mΩ Rdc B82730G [B82730G3262A020]; 167-0266
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 330 μH |
| Maximum DC Current | 2.6A |
| Mounting Type | Radial |
| Maximum DC Resistance | 60mΩ |
| Tolerance | -30 → +50% |
| Length | 16.5mm |
| Depth | 15mm |
| Height | 12mm |
| Dimensions | 16.5 x 15 x 12mm |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 100kHz |
| Lead Pitch | 8mm |
| Series | B82730G |
| Maximum Operating Temperature | +40°C |
| Lead Diameter | 0.6mm |
| Terminal Type | PC Pin |
