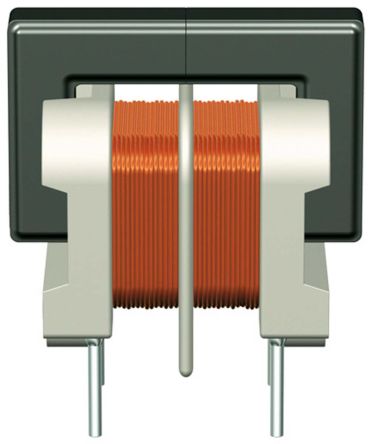

EPCOS 1.8 mH -30 → +50% Ferrite Common Mode Choke, Max SRF:10kHz, 1A Idc, 340mΩ Rdc B82730U [B82730U3102A020]; 167-0270
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 1.8 mH |
| Maximum DC Current | 1A |
| Mounting Type | Radial |
| Maximum DC Resistance | 340mΩ |
| Tolerance | -30 → +50% |
| Length | 16.5mm |
| Depth | 11mm |
| Height | 16.5mm |
| Dimensions | 16.5 x 11 x 16.5mm |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 10kHz |
| Lead Pitch | 8mm |
| Series | B82730U |
| Lead Diameter | 0.6mm |
| Terminal Type | PC Pin |
| Maximum Operating Temperature | +40°C |
