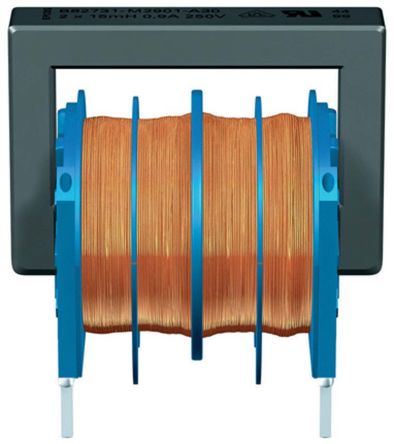

EPCOS 6.8 mH -30 → +50% Ferrite Common Mode Choke, Max SRF:10kHz, 1.3A Idc, 280mΩ Rdc B82731M [B82731M2132A030]; 167-0381
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 6.8 mH |
| Maximum DC Current | 1.3A |
| Mounting Type | Radial |
| Maximum DC Resistance | 280mΩ |
| Tolerance | -30 → +50% |
| Length | 21mm |
| Depth | 15mm |
| Height | 20mm |
| Dimensions | 21 x 15 x 20mm |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 10kHz |
| Lead Pitch | 12.5mm |
| Series | B82731M |
| Maximum Operating Temperature | +40°C |
| Terminal Type | PC Pin |
