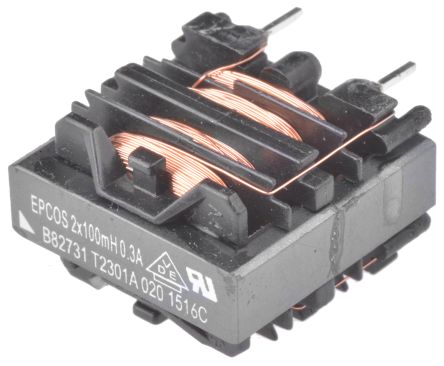

EPCOS 100 mH -30 → +50% Ferrite Power Line Choke, Max SRF:10kHz, 300mA Idc, 6.6Ω Rdc B82731T [B82731T2301A020]; 167-0390
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 100 mH |
| Maximum DC Current | 300mA |
| Mounting Type | Radial |
| Maximum DC Resistance | 6.6Ω |
| Tolerance | -30 → +50% |
| Length | 21.5mm |
| Depth | 13.5mm |
| Height | 21.1mm |
| Dimensions | 21.5 x 13.5 x 21.1mm |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 10kHz |
| Lead Pitch | 10mm |
| Series | B82731T |
| Maximum Operating Temperature | +40°C |
| Terminal Type | PC Pin |
