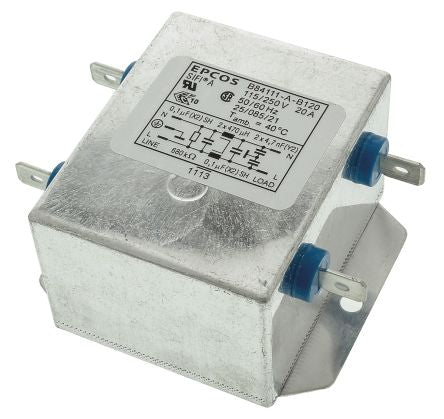

EPCOS B84111A Series 20A 250 V ac 60Hz Flange Mount RFI Filter, with Tab Terminals, Single Phase [B84111A0000B120]; 167-8387
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 20A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Tab |
| Number of Phases | 1 |
| Series | B84111A |
| Number of Stages | Single Stage |
| Operating Frequency | 60Hz |
| Length | 77mm |
| Depth | 63.5mm |
| Height | 38mm |
| Capacitance | 0.1 x 2 μF, 4700 x 2 pF |
| Inductance | 0.47 x 2 mH |
| Dimensions | 77 x 63.5 x 38 |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.369 mA |
| Maximum Operating Temperature | +85°C |
