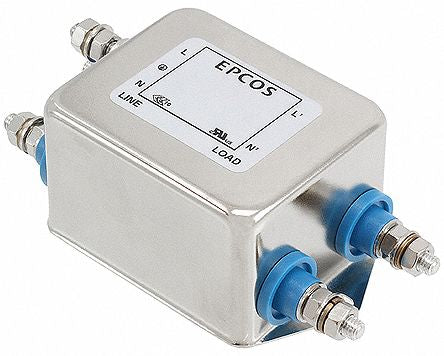

EPCOS B84111F Series 25A 250 V ac/dc 50 → 60Hz Chassis Mount EMC Filter, with Screw Terminals, Single Phase [B84111F0000M125]; 124-5289
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 25A |
| Maximum Voltage Rating | 250 V ac/dc |
| Mounting Type | Chassis Mount |
| Termination Style | Screw |
| Number of Phases | 1 |
| Series | B84111F |
| Number of Stages | Single Stage |
| Operating Frequency | 50 → 60Hz |
| Length | 63mm |
| Depth | 51mm |
| Height | 38mm |
| Capacitance | 0.1 x 2µF |
| Inductance | 0.66 x 2 mH |
| Dimensions | 63 x 51 x 38mm |
| Leakage Current | 0 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Standards Met | UL 1283 |
