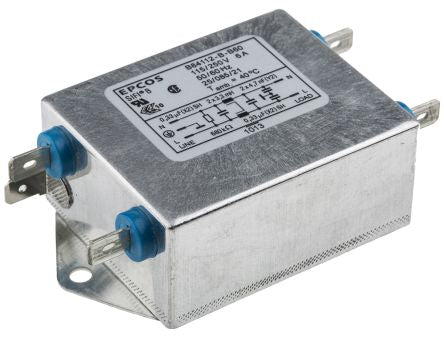

EPCOS B84112B Series 6A 250 V ac 50 → 60Hz Chassis Mount RFI Filter, with Screw Terminals, Single Phase [B84112B0000B060]; 167-8310
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 6A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Screw |
| Number of Phases | 1 |
| Series | B84112B |
| Number of Stages | Single Stage |
| Operating Frequency | 50 → 60Hz |
| Length | 70mm |
| Depth | 89.5mm |
| Height | 28.6mm |
| Capacitance | 2 x 0.33 μF, 4700 x 2 pF |
| Dimensions | 70 x 89.5x 28.6 |
| Inductance | 3.3 x 2 mH |
| Leakage Current | 0.369 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
