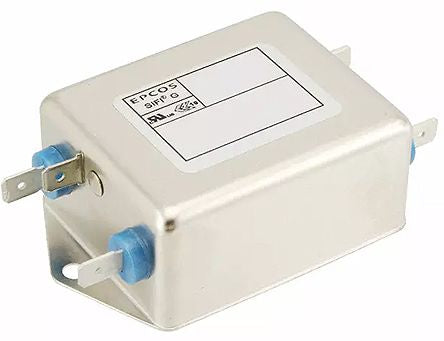

EPCOS B84112G Series 6A 250 V ac/dc 50 → 60Hz Chassis Mount EMC Filter, with Lug, Tab Connector Terminals [B84112G0000M060]; 124-5293
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 6A |
| Maximum Voltage Rating | 250 V ac/dc |
| Mounting Type | Chassis Mount |
| Termination Style | Lug, Tab Connector |
| Number of Phases | 1 |
| Number of Stages | Single Stage |
| Series | B84112G |
| Operating Frequency | 50 → 60Hz |
| Length | 63mm |
| Depth | 51mm |
| Height | 29mm |
| Capacitance | 0.47 x 2µF |
| Inductance | 3.3 x 2 mH |
| Dimensions | 63 x 51 x 29mm |
| Leakage Current | 0 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Standards Met | UL 1283 |
