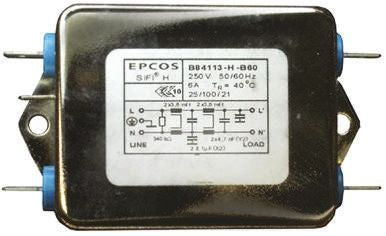

EPCOS B84113H Series 6A 250 V ac/dc 50 → 60Hz Chassis Mount RFI Filter, with Tab Terminals, Single Phase [B84113H0000B060]; 702-4047
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 6A |
| Maximum Voltage Rating | 250 V ac/dc |
| Mounting Type | Chassis Mount |
| Termination Style | Tab |
| Number of Phases | 1 |
| Number of Stages | Two Stage |
| Series | B84113H |
| Operating Frequency | 50 → 60Hz |
| Length | 52mm |
| Depth | 89.5mm |
| Height | 38mm |
| Capacitance | 1 x 2 μF, 4700 x 2 pF |
| Inductance | 3.6 x 4 mH |
| Dimensions | 52 x 89.5 x 38mm |
| Leakage Current | 0.369 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Standards Met | UL 1283 |
