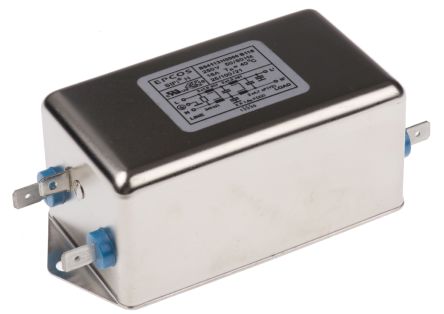

EPCOS B84113H Series 16A 250 V ac/dc 50 → 60Hz Chassis Mount RFI Filter, with Tab Terminals, Single Phase [B84113H0000B116]; 167-0400
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 16A |
| Maximum Voltage Rating | 250 V ac/dc |
| Mounting Type | Chassis Mount |
| Termination Style | Tab |
| Number of Phases | 1 |
| Number of Stages | Two Stage |
| Series | B84113H |
| Operating Frequency | 50 → 60Hz |
| Length | 52mm |
| Depth | 117.5mm |
| Capacitance | 1.5 x 2 μF, 4700 x 2 pF |
| Height | 43mm |
| Dimensions | 52 x 117.5 x 43mm |
| Inductance | 1.3 x 4 mH |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.369 mA |
| Maximum Operating Temperature | +100°C |
