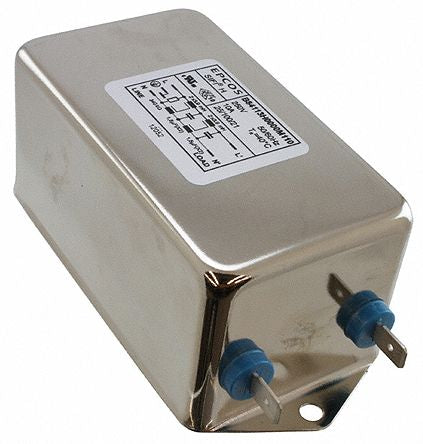

EPCOS B84113H Series 10A 250 V ac/dc 50 → 60Hz Chassis Mount EMC Filter, with Lug, Tab Connector Terminals [B84113H0000M110]; 170-1351
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 10A |
| Maximum Voltage Rating | 250 V ac/dc |
| Mounting Type | Chassis Mount |
| Termination Style | Lug, Tab Connector |
| Number of Phases | 1 |
| Series | B84113H |
| Number of Stages | Two Stage |
| Operating Frequency | 50 → 60Hz |
| Length | 91mm |
| Depth | 51mm |
| Height | 43mm |
| Capacitance | 1.5 x 2µF |
| Inductance | 3.9 x 4 mH |
| Dimensions | 91 x 51 x 43mm |
| Leakage Current | 0 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Standards Met | UL 1283 |
