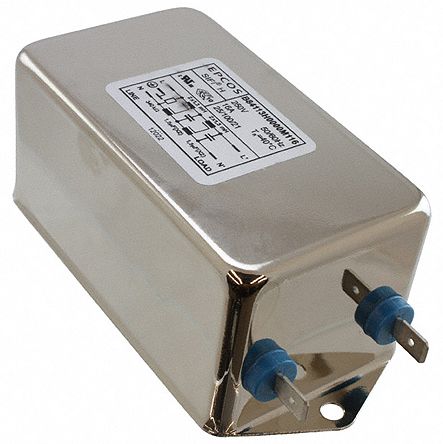

EPCOS B84113H Series 36A 250 V ac/dc 50 → 60Hz Chassis Mount EMC Filter, with Screw Terminals, Single Phase [B84113H0000M136]; 170-1355
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 36A |
| Maximum Voltage Rating | 250 V ac/dc |
| Mounting Type | Chassis Mount |
| Termination Style | Screw |
| Number of Phases | 1 |
| Series | B84113H |
| Number of Stages | Two Stage |
| Operating Frequency | 50 → 60Hz |
| Length | 133mm |
| Depth | 58mm |
| Height | 53mm |
| Capacitance | 3.3 x 2µF |
| Dimensions | 133 x 58 x 53mm |
| Inductance | 0.5 x 4 mH |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0 mA |
| Maximum Operating Temperature | +100°C |
| Standards Met | UL 1283 |
