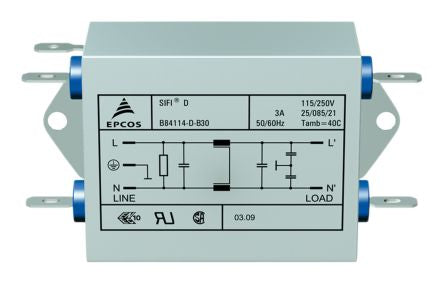

EPCOS B84114D Series 3A 250 V ac 50 → 60Hz Flange Mount RFI Filter, with Tab Terminals, Single Phase [B84114D0000B030]; 213-7104
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 3A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Tab |
| Number of Phases | 1 |
| Number of Stages | Single Stage |
| Series | B84114D |
| Operating Frequency | 50 → 60Hz |
| Length | 89.5mm |
| Depth | 50.8mm |
| Height | 28.6mm |
| Capacitance | 0.47 x 2 μF, 4700 x 2 pF |
| Dimensions | 89.5 x 50.8 x 28.6mm |
| Inductance | 5.6 x 2 mH |
| Leakage Current | 0.369 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
