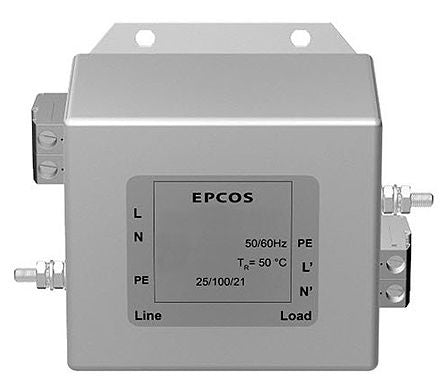

EPCOS B84142A*166 Series 10A 250 V ac/dc 50 → 60Hz Chassis Mount EMC Filter, with Tab Terminals, Single Phase [B84142A0010A166]; 124-5309
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 10A |
| Maximum Voltage Rating | 250 V ac/dc |
| Mounting Type | Chassis Mount |
| Termination Style | Tab |
| Number of Phases | 1 |
| Series | B84142A*166 |
| Number of Stages | Single Stage |
| Operating Frequency | 50 → 60Hz |
| Length | 63mm |
| Depth | 51mm |
| Height | 38mm |
| Dimensions | 63 x 51 x 38mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 2.59 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 15mΩ |
