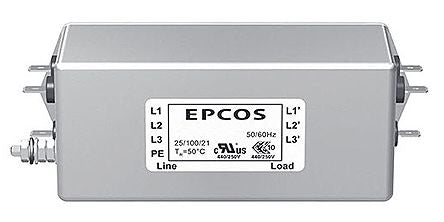

EPCOS B84143A*166 Series 10A 300 V ac, 520 V ac 50 → 60Hz Chassis Mount EMC Filter, with Terminal Block Terminals [B84143A0010A166]; 170-1359
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 10A |
| Maximum Voltage Rating | 300 V ac, 520 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Terminal Block |
| Number of Phases | 3 |
| Number of Stages | Single Stage |
| Series | B84143A*166 |
| Operating Frequency | 50 → 60Hz |
| Length | 133mm |
| Depth | 58mm |
| Height | 53mm |
| Dimensions | 133 x 58 x 53mm |
| Leakage Current | 3.1 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 12.9mΩ |
| Standards Met | UL 1283 |
